Products Description
The Stainless Steel Braking Resistor Unit is an electrical resistance component designed for electrical braking and energy dissipation. It is widely used in motor drive systems, variable frequency drive systems, and industrial equipment that requires controlled and reliable braking. Made of stainless steel and featuring a carefully designed resistance structure, the product offers excellent heat resistance, corrosion resistance, and mechanical stability. During operation, it converts excess electrical energy generated during braking into heat and dissipates it efficiently, helping equipment achieve smooth and reliable deceleration. With a compact structure and flexible installation options, the Stainless Steel Braking Resistor Unit can be adapted to various industrial control systems and equipment configurations.
Product Advantages
Excellent Corrosion Resistance
The stainless steel construction provides good corrosion resistance, making the product suitable for long-term use in various industrial environments.
Stable Braking Performance
The resistor unit provides stable resistance characteristics and works effectively with drive systems to support smooth and reliable braking.
Reliable Structure
The product features a well-designed internal structure and organized component layout, providing good mechanical stability and operational reliability.
Effective Heat Dissipation
The structure is designed according to the heat generated during resistance operation, helping transfer and dissipate heat efficiently.
Flexible Installation
The practical and compact structure allows the unit to be integrated with different types of equipment and adapted to various installation conditions.
Working Principle
Energy Dissipation
During the braking process, electrical energy generated by the equipment flows into the resistor unit, where excess energy is converted into heat and dissipated.
Braking Assistance
The Stainless Steel Braking Resistor Unit works together with the drive system to dissipate excess electrical energy, helping the equipment achieve smooth and controlled deceleration.
Heat Dissipation
The heat generated by the resistance elements is transferred and released through the product structure and heat dissipation design, helping prevent excessive heat accumulation.
Stable Operation
A properly designed resistance structure provides a stable energy dissipation path for the drive system, supporting reliable operation during braking.

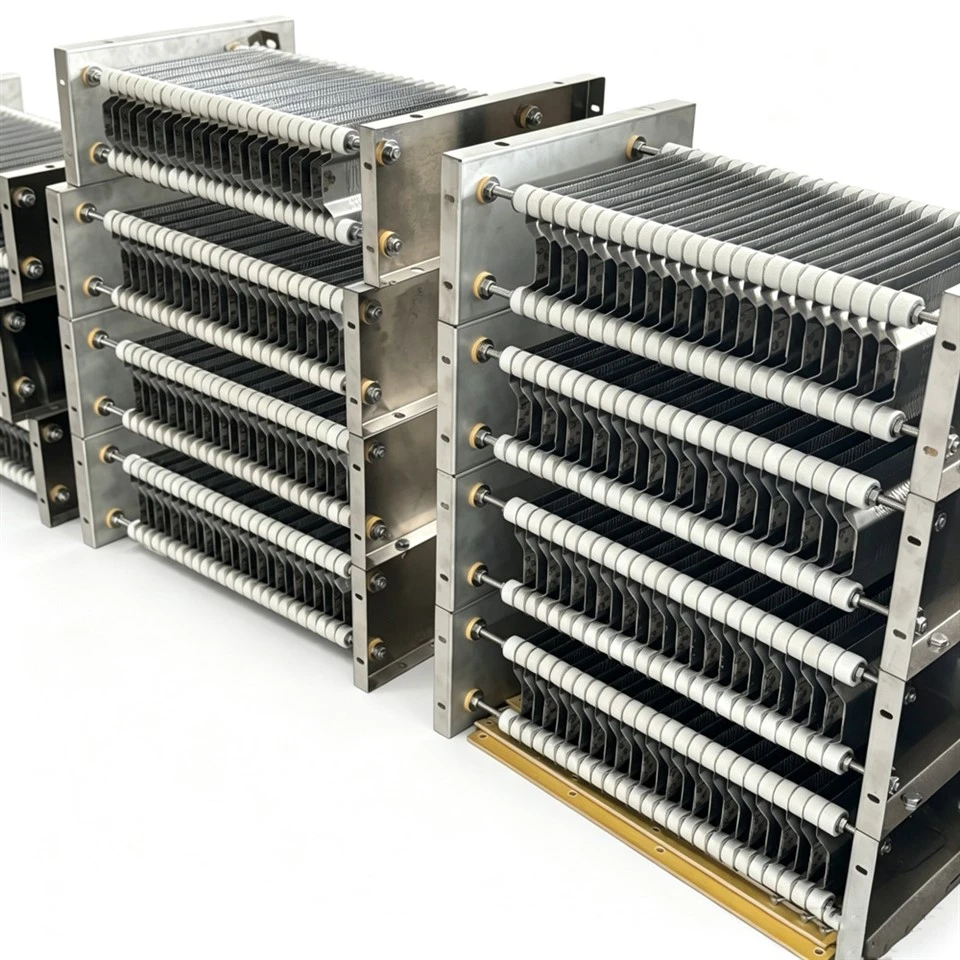

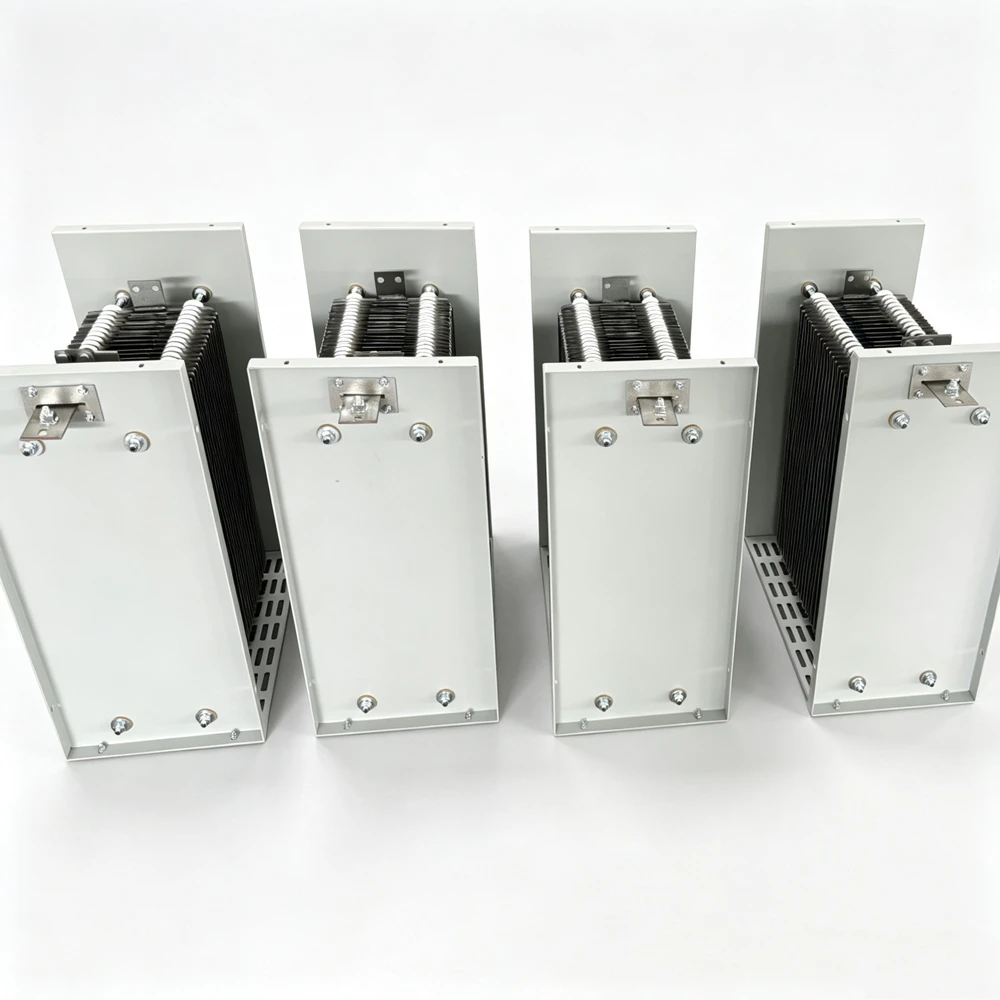

Product Image
Instructions for Use
Select a suitable product model according to the equipment type, drive system, braking requirements, and actual operating conditions.
Install and secure the unit according to the applicable installation requirements. Ensure reliable connections and provide sufficient space for heat dissipation.
Confirm the electrical connection requirements before wiring and ensure that all connections are properly installed to prevent improper operation.
Select a suitable installation location according to the actual operating environment. Avoid prolonged exposure to moisture, corrosive substances, or excessive heat.
After installation and commissioning, regularly monitor the braking performance and operating condition of the unit. Stop the equipment and inspect it promptly if any abnormal condition occurs.
Precautions
The product may generate considerable heat during operation. Avoid direct contact with its surface to prevent burns or other injuries.
Ensure sufficient airflow around the product during installation and avoid blocking the heat dissipation area with other objects.
Maintain an appropriate safety distance between the product and flammable or heat-sensitive materials to ensure safe operation.
FAQ
Q: What is the main function of the Stainless Steel Braking Resistor Unit?
A: It is mainly used to dissipate excess electrical energy generated during equipment braking and help the drive system achieve smooth deceleration and braking.
Q: What types of equipment can use the Stainless Steel Braking Resistor Unit?
A: It can be widely used in variable frequency drive equipment, lifting equipment, conveyor systems, machine tools, and various types of automated equipment.
Q: Why is stainless steel used for the product?
A: Stainless steel provides good corrosion resistance and mechanical stability, making the product suitable for a wide range of industrial operating environments.

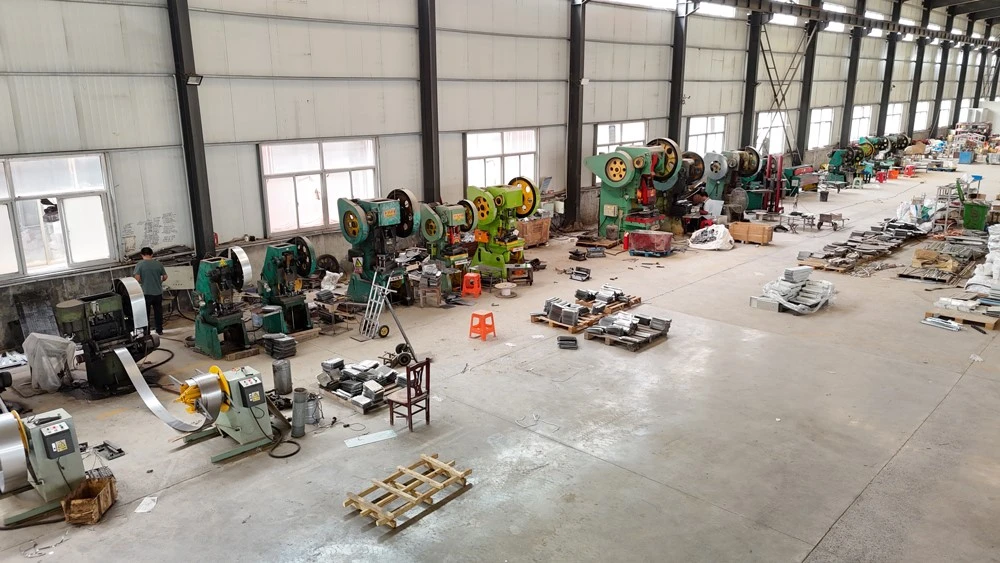

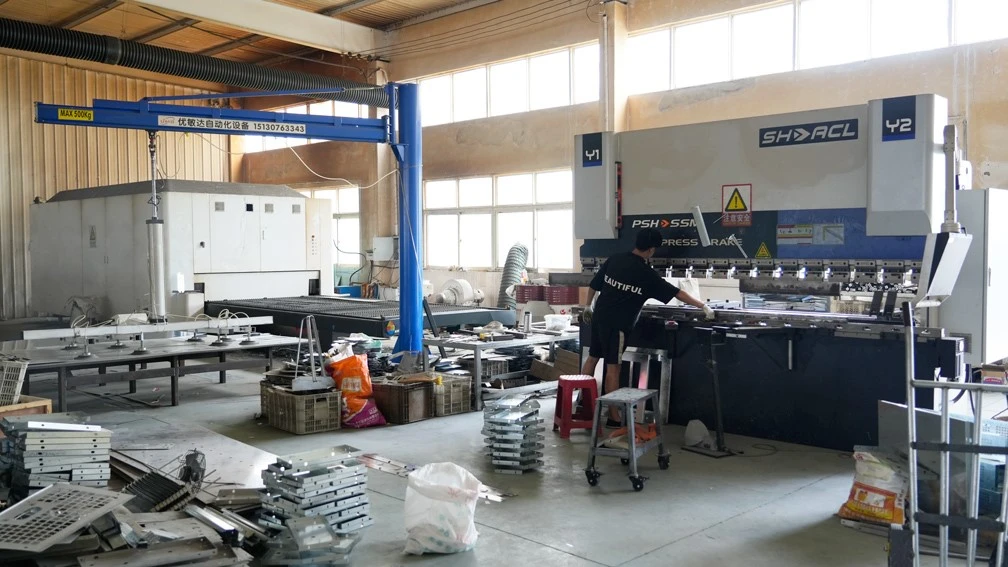

Factory Environment
