Products Description

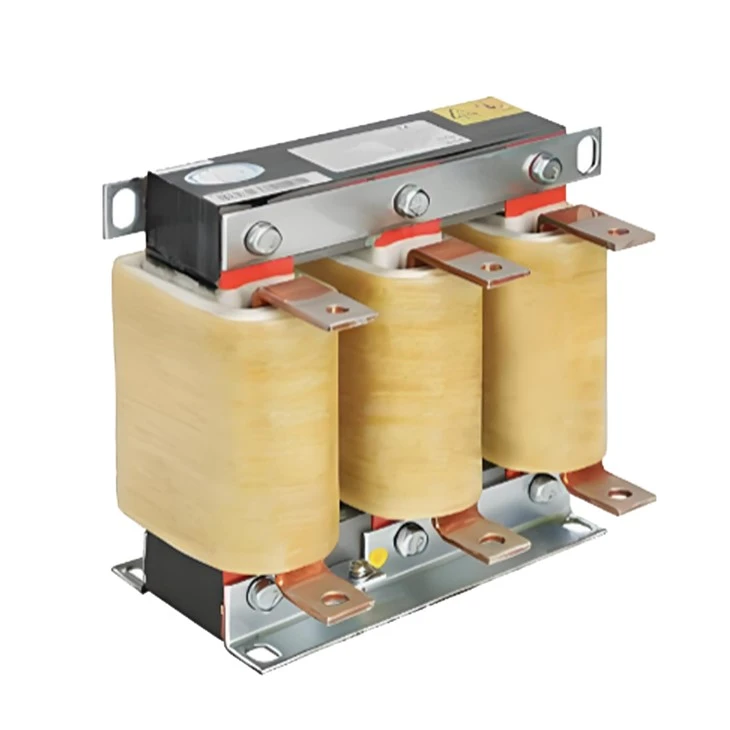

The Three Phase AC Input Reactor is a core power quality device for reactive power compensation and harmonic mitigation installed at the front end of power systems, widely used on the input side of non‑linear loads including frequency converters and rectifiers. Utilizing inductive impedance characteristics, it effectively suppresses grid‑side harmonic currents, improves power factor, and shields downstream equipment from grid voltage fluctuations. Constructed with high‑grade iron cores and high‑purity copper wire windings, the unit boasts outstanding heat dissipation performance and elevated insulation class, delivering low temperature rise and quiet running. Its compact structure enables straightforward installation via direct series connection to three‑phase power input terminals. Suitable for a full spectrum of industrial and commercial power distribution scenarios, it represents an optimal solution for guaranteeing supply quality and extending equipment service life.
Product Structure
The Three Phase AC Input Reactor primarily consists of a laminated iron core, copper wire windings, insulating support brackets, wiring terminals, an outer protective casing and a mounting base. The iron core is assembled from stacked silicon steel laminations, while windings undergo full vacuum varnish impregnation before being sealed inside the casing. Its compact layout delivers a high protection rating, facilitating convenient on‑site installation and subsequent routine maintenance.
Product Advantages
Harmonic Suppression
Effectively suppresses grid‑side harmonic currents, enhances overall supply quality and protects downstream equipment against damage from harmonic interference.
Power Factor Correction
Optimizes system power factor, reduces reactive power losses, lowers electricity expenditure and improves the overall operational efficiency of power supply networks.
Equipment Protection
Limits short‑circuit currents and abrupt voltage transients, forming a reliable front‑line protective barrier for sensitive equipment such as frequency converters.
Reliable Operation
Manufactured with premium raw materials and mature production processes, it features low temperature rise and minimal operating noise, supporting stable continuous long‑term operation with a low failure rate.
Simple Installation
Its compact, space‑saving design allows direct series connection on input terminals with quick, uncomplicated wiring, requiring no extra installation footprint.
Extended Service Life
High insulation grade and superior thermal dissipation enable an extended service lifespan under nominal operating conditions, delivering a lower total cost of ownership over its full operational lifecycle.
Product Image
Manufacturing Technology
Iron Core Fabrication
High‑permeability, low‑loss silicon steel laminations are selected and processed via precision stacking technology to form uniform magnetic circuits, substantially cutting core energy losses and operating noise.
Winding Production
Tightly wound with high‑purity copper conductors and subject to rigorous standardized insulation treatment to guarantee reliable inter‑turn insulation and superior temperature rise control.
Thermal Dissipation Design
Optimized air duct and heat exchange structural design delivers efficient natural convection cooling, resulting in low temperature rise and enhanced safety during prolonged continuous operation.
Insulation Treatment
All windings are processed with vacuum varnish impregnation to achieve an elevated overall insulation class, providing resistance to moisture and mold for reliable performance across diverse harsh operating environments.
FAQ
Q: What key operational issues of connected equipment can the Three Phase AC Input Reactor resolve?
A: It mainly stabilizes the waveform of front‑end input currents, buffers surge currents between the utility grid and operating equipment, reduces interference to matched variable frequency machinery originating from grid fluctuations and harmonics, delivers smoother overall unit performance, and lessens component wear caused by abrupt current transients inside the equipment.
Q: What tangible operational improvements can be observed after installing this input reactor?
A: Equipment vibration and abnormal mechanical noise will be reduced; unplanned shutdowns and fault alarms triggered by grid current fluctuations will occur far less frequently. The entire unit achieves higher stability during long continuous running and is less susceptible to disturbance from startup/shutdown cycles of other high‑power loads on the same circuit.
Q: What performance differences exist between the Three Phase AC Input Reactor and general‑purpose reactors?
A: Input reactors are purpose‑built for the power supply input terminals of equipment, prioritizing suppression of external grid interference and inrush currents. Other reactor types are mostly fitted on equipment output sides to optimize load‑side operating conditions. The two categories differ fundamentally in protection and performance priorities and cannot be used interchangeably.
Q: Will electromagnetic radiation emitted by the reactor interfere with adjacent measuring instruments?
A: The electromagnetic radiation generated during operation is extremely low and will not disrupt normal readings of standard surrounding instruments and sensing hardware. Neighboring control equipment will not experience data drift or display malfunctions.
