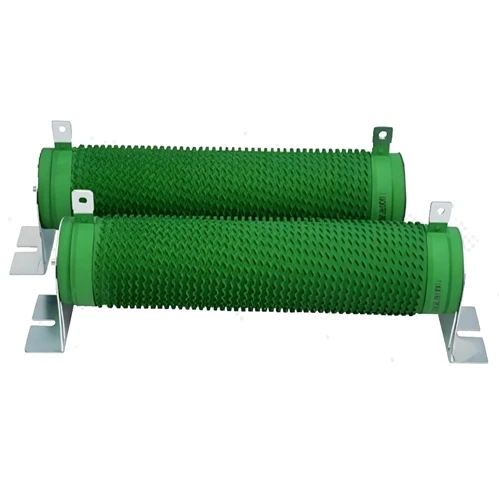

The corrugated structure of a Corrugated Resistor is primarily related to the arrangement of the resistive material, space utilization, heat-dissipation requirements, and overall product design. Compared with a simple straight configuration, a corrugated structure allows the resistive element to follow a continuous, curved path. This helps the product maintain a compact form while meeting the basic electrical requirements of the application.
First, the corrugated structure helps improve space utilization. Electrical equipment often contains multiple components, and the space available for a resistor may be limited. By adopting a corrugated shape, the resistive material can be arranged within a relatively compact area, reducing the need for a long, straight installation space. This arrangement helps the product accommodate different equipment layouts and allows designers to coordinate the positioning of the resistor with other electrical components.
Second, the corrugated structure can support heat dissipation. Its undulating surface may increase the opportunities for heat exchange between the resistive element and the surrounding air. When current passes through the resistive material, the resulting heat can be transferred to the surrounding environment through conduction, natural convection, or other applicable heat-transfer methods. A well-designed structure can facilitate heat dissipation and help reduce the effects of localized heat buildup. However, actual heat-dissipation performance also depends on the material, structural layout, installation method, airflow, and operating load. It cannot be determined solely by the shape of the resistor.
Third, the corrugated structure supports a continuous arrangement of the resistive element. With an appropriate design, the resistive material can follow a defined path to meet the electrical requirements of the circuit. In applications that require electrical energy to be dissipated during operation, this structure can work together with suitable connecting components and support structures to form a complete resistor assembly.
The corrugated shape also affects the product's overall mechanical design. A suitable design must consider how the resistive element is secured, the spacing between components, and the stability of the assembly during installation. Appropriate supports and fasteners can help reduce structural problems caused by vibration, impact, or improper installation. However, a corrugated shape alone does not guarantee greater mechanical strength under all conditions. Actual performance depends on the materials, connections, and overall design.
In addition, a Corrugated Resistor generates heat during operation, so its structure must support both electrical performance and thermal management. During installation, sufficient ventilation space should be maintained according to the product's requirements. The resistor should not be placed excessively close to other heat-generating components, and dust or foreign objects should not be allowed to interfere with normal heat dissipation.
It is important to note that different Corrugated Resistor products may have different structural designs depending on their intended applications and operating methods. When selecting and using a product, users should consider its electrical function, available installation space, heat-dissipation environment, and actual operating conditions.
In conclusion, a Corrugated Resistor adopts a corrugated structure to arrange the resistive material more efficiently while considering space utilization, heat dissipation, and overall structural design. This configuration provides a practical form for industrial electrical applications, although the product's actual performance must still be evaluated based on its complete design and operating conditions.
